Technical Parameter

Pure/Mineral Water Production Line(Washing, filling and capping 3 in 1 machine )

Main material stainless steel 304 which is suitable for bottle size from 300ml to 2 Liter. It is an automatic washing, filling and capping three in one machine.

（1）External dimensions: 2200×1550×2500 mm
（2）Weight: 2200kg
（3）Washing heads:12
（1）Filling heads:12
（4）Capping heads:5
（5）Production capacity: 4500bph at 500ml bottle
（6）Total power: 4.5KW
（7）Filling material: water
（8）Conveyor form: air conveyor
（9）Bottle application: plastic PET
        Diameter of bottle body: Φ50mm—Φ100mm
        Height: 150mm-320mm
        Maximum of cap: Φ25-Φ40mm
        Cap application: plastic
        Adjustable form: transducer
（10）Volume of bottle: 330ml-2.L
（11）Power of cap unscramble:0.25KW

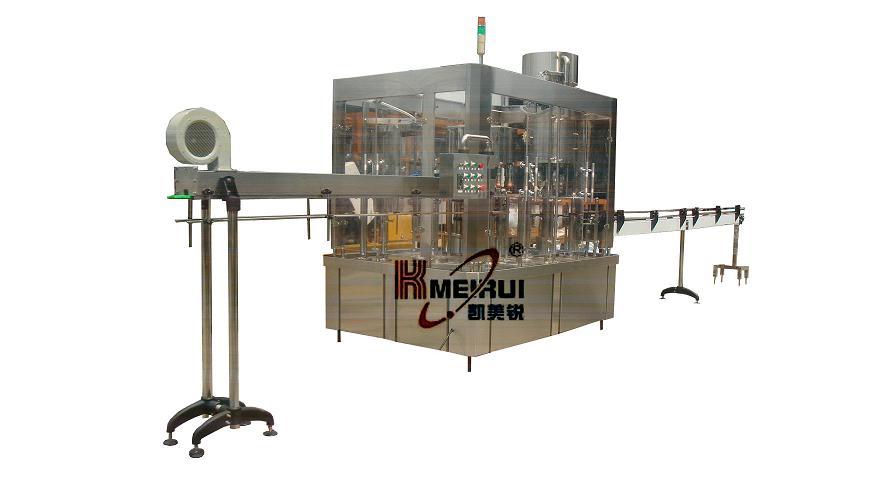

Detail Drawing
