Technical Parameter

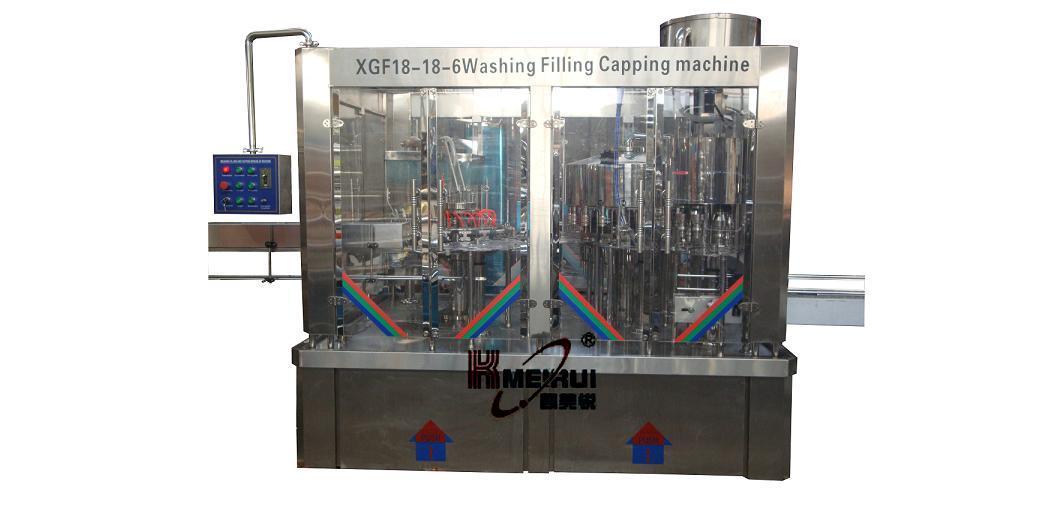

Washing, filling and capping machine
Main material stainless steel 304 which is suitable for bottle size from 300ml to 2 Liter. It is an automatic washing, filling and capping three in one machine.

（1）External dimensions: 2600×2000×2600 mm
（2）Weight: 3000kg
（3）Washing:18
（4）Filling heads:18
（5）Capping heads:6
（6）Production capacity: 8000bph at 500ml bottle
（7）Total power: 5.KW
（8）Filling material: water
（9）Conveyor form: air conveyor
（10）Bottle application: plastic PET
          Diameter of bottle body: Φ50mm—Φ100mm
          Height: 150mm-320mm
          Maximum of cap: Φ25-Φ40mm
          Cap application: plastic
          Adjustable form: transducer
（11）Volume of bottle: 330ml-2.L
（12）Power of cap unscramble:0.37KW

Detail Drawing
